7.5A Rated Current XLR Connector Male and Female Panel Mount Jacks for Audio Connections in Indoor Environments

  • 1
  • 2
  • 3

Place of Origin : Guangdong, China

Brand Name : SHANGWEN

Model Number : SWM5X-3ZBN

MOQ : 10 pieces

Price : CN¥6.85-16.27/pieces

Rated Current : 7.5A

IP level : IP40

Type : XLR connector

Application : Audio & Video

Gender : MALE/FEMALE

Industrial electronics : accessories

Contact Now

Products Description
XLR connector-5 pin male socket
7.5A Rated Current XLR Connector Male and Female Panel Mount Jacks for Audio Connections in Indoor Environments
Model:
SWM5X-3ZBN-KN(Black)
SWM5X-3ZSN-KN(Silver)
☑Standard D mounting dimensions, fully matched to existing installation
☑Light size, can be installed front and back
☑Zinc alloy shell, contact point gold-plated
☑Can solve the fast connection requirement of input and output of DMX signal in outdoor conditions in the lighting industry
☑Protection class IP40
7.5A Rated Current XLR Connector Male and Female Panel Mount Jacks for Audio Connections in Indoor Environments
7.5A Rated Current XLR Connector Male and Female Panel Mount Jacks for Audio Connections in Indoor Environments
7.5A Rated Current XLR Connector Male and Female Panel Mount Jacks for Audio Connections in Indoor Environments
1.Product parameters
Connection Type
XLR
Gender
Male
2.Electrical parameters
Capacitance between contacts
≤7pF
Contact resistance
≤5mΩ
Dielectric strength
1.5kV DC
Insulation resistance
> 1.5GΩ (initial)
Rated current per contact
7.5A
Rated voltage
<50V
3.Mechanical parameters
Insertion force
≤ 40N
Withdrawal force
≤ 40N
Service life
＞1000 mating cycles
Chassis shape
D type
4.Material and environmental parameters
Contacts
Cu alloy
Contact plating
Au
Insert
Polyamide (PA 66 +30 % GF)
Shell
Zinc diecast (ZnAl4Cu1)
Shell plating
Cr black
Solder ability
Complies with IEC 68-2-20
Flame-retardant grade
UL 94 HB
Protection class
IP40
Temperature range
-20℃to +80℃

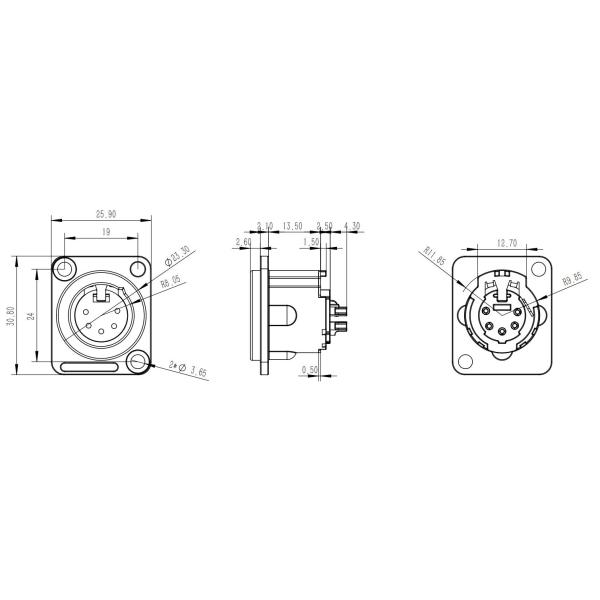

5.Size reference (unit /mm)
7.5A Rated Current XLR Connector Male and Female Panel Mount Jacks for Audio Connections in Indoor Environments
Application area
7.5A Rated Current XLR Connector Male and Female Panel Mount Jacks for Audio Connections in Indoor Environments
Company Information
7.5A Rated Current XLR Connector Male and Female Panel Mount Jacks for Audio Connections in Indoor Environments
Patent & Certification
7.5A Rated Current XLR Connector Male and Female Panel Mount Jacks for Audio Connections in Indoor Environments
Exhibition activities
7.5A Rated Current XLR Connector Male and Female Panel Mount Jacks for Audio Connections in Indoor Environments
Packaging reference
7.5A Rated Current XLR Connector Male and Female Panel Mount Jacks for Audio Connections in Indoor Environments
Payment and logistics
7.5A Rated Current XLR Connector Male and Female Panel Mount Jacks for Audio Connections in Indoor Environments
FAQ
7.5A Rated Current XLR Connector Male and Female Panel Mount Jacks for Audio Connections in Indoor Environments
1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
